F3 PRO | 3.5″ Multifunctional Touch Scene Switch
The XY-3 PRO combines a 3.5-inch touchscreen, physical buttons and Zigbee 3.0 connectivity in one wall-mounted smart switch.
Integrate the switch with Home Assistant through ZHA (Zigbee Home Automation) for smart lighting, curtain and scene control. Once added to Home Assistant, the device can also be synchronized to the HSX Home Assistant control panel for centralized touchscreen control.
Home Assistant Compatible via ZHA
Integrate the XY-3 PRO with Home Assistant through the Zigbee Home Automation (ZHA) integration for smart home control and automation.

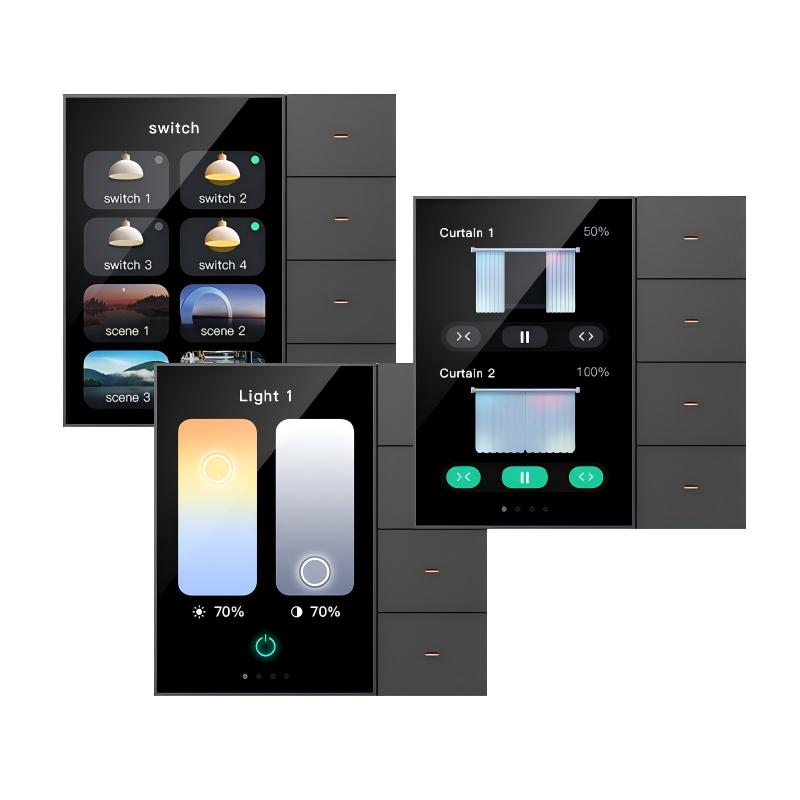

3.5” Touchscreen + Physical Buttons
Combines a 3.5-inch touchscreen with four physical buttons, providing both touchscreen and convenient physical control.
Lighting, Curtain & Scene Control
Supports control of up to 4 dimming lights, 4 curtains and 8 scenes, providing flexible control for different smart home applications.
Zigbee 3.0 Connectivity
Uses Zigbee 3.0 wireless communication for integration with compatible smart home systems.
Sync to HSX Home Assistant Control Panel
After the XY-3 PRO is added to Home Assistant through ZHA, it can be synchronized to the HSX Home Assistant control panel for centralized control.
Built-in Radar Detection
Integrated radar detection provides additional possibilities for presence-based smart home automation.
Physical Switch + Home Assistant + Central Control Panel
Control locally from the wall switch, manage devices through Home Assistant, and synchronize supported devices to the HSX Home Assistant control panel for centralized touchscreen control.
| Display | 3.5‑inch touchscreen |
| Resolution | 360 × 480 |
| Physical Buttons | 4 |
| Scene Control | Up to 8 scenes |
| Dimming Control | Up to 4 dimming lights |
| Curtain Control | Up to 4 curtains |
| Sensor | Radar detection |
| Wireless Connection | Zigbee 3.0 |
| Installation | Standard 86‑type wall box |
| Product Size | 86 × 86 × 11 mm |
