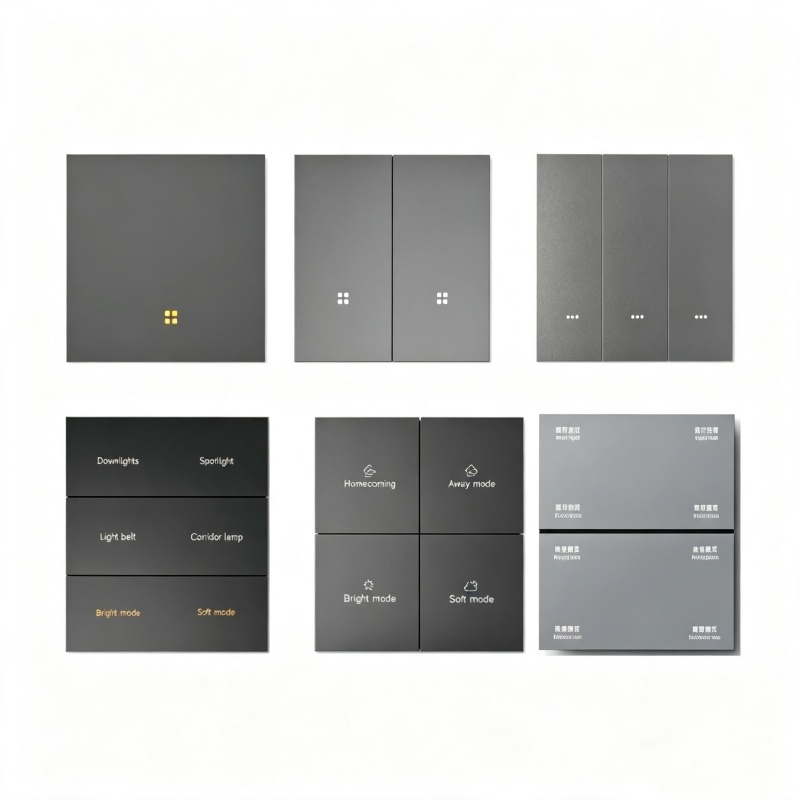

The M8 Series is a range of Zigbee 3.0 smart wall switches, available in 1, 2, 3, 4, 6 and 8-key options for different smart home control requirements.
Compatible with Home Assistant via ZHA (Zigbee Home Automation), the switches can be added to the Home Assistant system for smart lighting and automation control. Once added, supported devices can also be synchronized to the HSX Home Assistant control panel for centralized touchscreen control.
Home Assistant Compatible via ZHA
Integrate M8 Series Zigbee smart switches with Home Assistant through the Zigbee Home Automation (ZHA) integration.
1/2/3/4/6/8‑Key Options
Multiple key configurations are available to meet different lighting, room and smart home project requirements.
Physical & Smart Control
Control connected lighting directly from the physical wall switch while also managing supported devices through Home Assistant.
Zigbee 3.0 Connectivity
Zigbee 3.0 wireless communication for integration with compatible Home Assistant Zigbee networks.
Smart Lighting & Automation Control
Use M8 Series switches for everyday lighting control and Home Assistant automation applications.
Sync to HSX Home Assistant Control Panel
After the switch is added to Home Assistant through ZHA, supported devices can be synchronized to the HSX Home Assistant control panel for central.
Complete Home Assistant Control Solution
Combine M8 Series Zigbee smart switches with HSX 7″, 8″, 10″ and 12″ Home Assistant control panels for both physical wall control and central.
| Key Options | 1 / 2 / 3 / 4 / 6 / 8 Keys |
| Color | White / Black / Gray |
| Power Supply | Neutral + Live Wire |
| Rated Voltage | AC 100‑240V, 50/60Hz |
| Rated Load ‑ Incandescent Lamp | 10‑200W per channel |
| Rated Load ‑ Energy‑Saving Lamp | 5‑100W per channel |
| Wireless Connection | Zigbee 3.0 |
| Operating Humidity | ≤85% RH, non‑condensing |
| Product Size | 86 × 86 × 35 mm |
